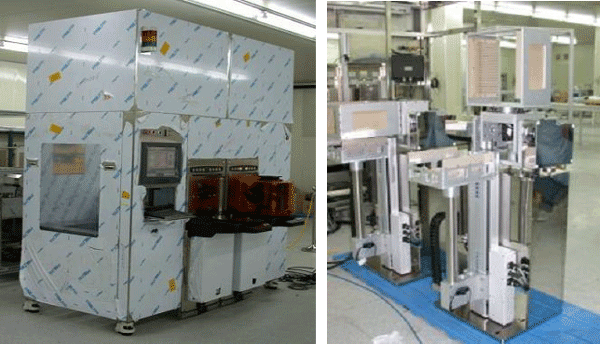

Wafer EFEM |
|
|
 |
|
By using of FOUP Opener, this is to transfer it to Processing System. Also, it’s improved Stability and
Accuracy by using of Clean Robot. |
|
Specification |
|
|
| - |
Project Name: LCOS SYSTEM/ UNLOADER |
|
| - |
Dimension : 1600L X 650W X 1920H |
|
| - |
Wafer Spec : 200mm~300mm(Glass, Silicon) |
|
| - |
Robot Type : Single Arm ROBOT (ATM) |
|
| - |
Utility |
|
|
Power : 200V 1Φ, 15A, 3,3KW |
|
|
Air : 5Kg/cm2 |
|
|
Vacuum Air : 500mmHg Over |
|
|
Communication: LAN or Serial |
|
|
|

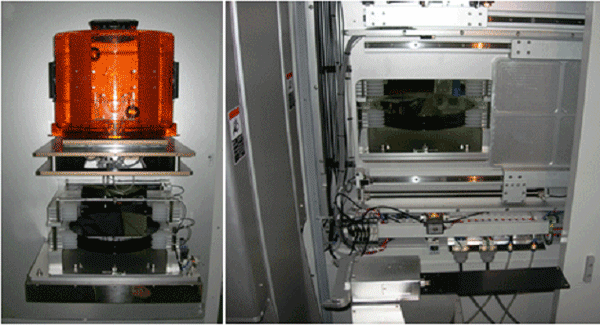

Foup |
|
|
 |
|
| This is Loading system to supply 300mm Wafer from Foup into Process Chamber. |
|
Specification |
|
|
| 1. |
Size : 542W x 964D x 1280H(mm) |
|
| 2. |
Port : 1 ~2 |
|
| 3. |
Feature : Standard loader Port is suitable to the difficult environment and in up to 80’c. |
|
|
Mainly this is used to Furnace Loader. |
|
|
|
 |
|
|
|
